Flight plan - ATR-20240910a

Flight plan

• The flight is planned to take off at 2024-09-10 12:30:00+00:00 UTC and land at 2024-09-10 16:00:00+00:00 UTC.

• Standard MAESTRO flight track designed to sample the mesoscale convective system to the southeast of Sal.

Show code cell source

Hide code cell source

from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

date_time = datetime(2024, 9, 9, 12, 0, 0)
date_time_str = date_time.strftime('%Y-%m-%d')
flight_time = datetime(2024, 10, 10, 12, 0, 0)

airport = sal
wp1 = LatLon(lat=16.765, lon=-22.73, label='wp1')
wp2 = LatLon(lat=15.0, lon=-21.2, label='wp2')
wp3 = LatLon(lat=16.03, lon=-22.09, label='wp3')

path = [airport, wp1, wp2, wp3, wp2, wp3, wp2, wp1, airport]

ds = cat.HIFS(refdate=date_time_str, reftime=date_time.hour).to_dask()
cwv_flight_time = ds["tcwv"].sel(time=flight_time, method = "nearest")

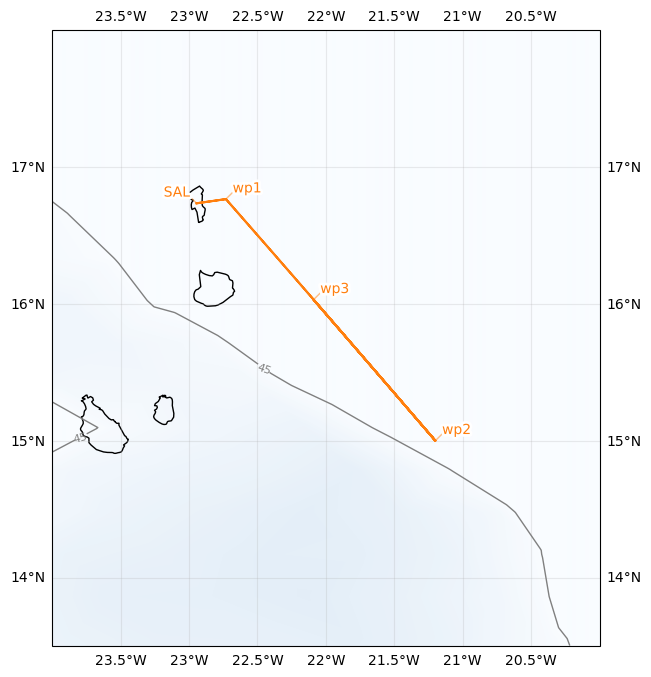

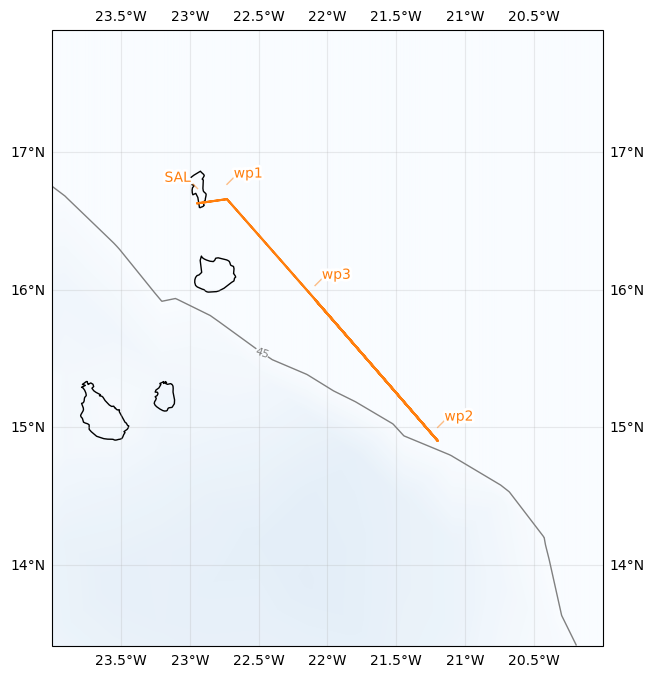

ax = path_preview(path)
ax.set_extent([-24, -20, 13.5, 18])

plot_cwv(cwv_flight_time)

Show code cell source

Hide code cell source

import pandas as pd
from dataclasses import asdict

pd.DataFrame.from_records(map(asdict, path)).set_index("label")

	lat	lon	fl	time	note
label
SAL	16.734488	-22.943974	0.0	None	None
wp1	16.765000	-22.730000	NaN	None	None
wp2	15.000000	-21.200000	NaN	None	None
wp3	16.030000	-22.090000	NaN	None	None
wp2	15.000000	-21.200000	NaN	None	None
wp3	16.030000	-22.090000	NaN	None	None
wp2	15.000000	-21.200000	NaN	None	None
wp1	16.765000	-22.730000	NaN	None	None
SAL	16.734488	-22.943974	0.0	None	None

Crew

Job	Name
Pilot	Guillaum Seurat
Pilot	Dominique Duchanoy
Mechanics	Thierry André
Expé Principal	Michel Cluzeau
Expé	Claude Lainard
PI	Basile Poujol
LNG	Emmeline François
aWALI	Laurent Forges
Microphys 1	Pierre Coutris
Microphys 2	Guy Febvre
RASTA	Christophe Legac
BASTA	Emma Chauvin
