Flight plan - ATR-20240907a

Contents

Flight plan - ATR-20240907a#

Flight plan#

  • The flight is planned to take off at 2024-09-07 10:00:00+00:00 UTC and land at 2024-09-07 13:30:00+00:00 UTC.

  • Flight track designed to sample shallow cumulus organization with ‘Millefeuille’ flight pattern (lower-troposphere only, multiple levels).

Hide code cell source


from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

date_time = datetime(2024, 9, 6, 12, 0, 0)
date_time_str = date_time.strftime('%Y-%m-%d')
flight_time = datetime(2024, 9, 12, 12, 0, 0)

airport = sal
wp1 = LatLon(lat=16.75, lon=-22.62, label='wp1')
wp2 = LatLon(lat=17.73, lon=-21.42, label='wp2')

path = [airport, wp1, wp2, wp1, airport]

ds = cat.HIFS(refdate=date_time_str, reftime=date_time.hour).to_dask()
cwv_flight_time = ds["tcwv"].sel(time=flight_time, method = "nearest")

ax = path_preview(path)
ax.set_extent([-24, -20, 14.5, 18])

plot_cwv(cwv_flight_time)

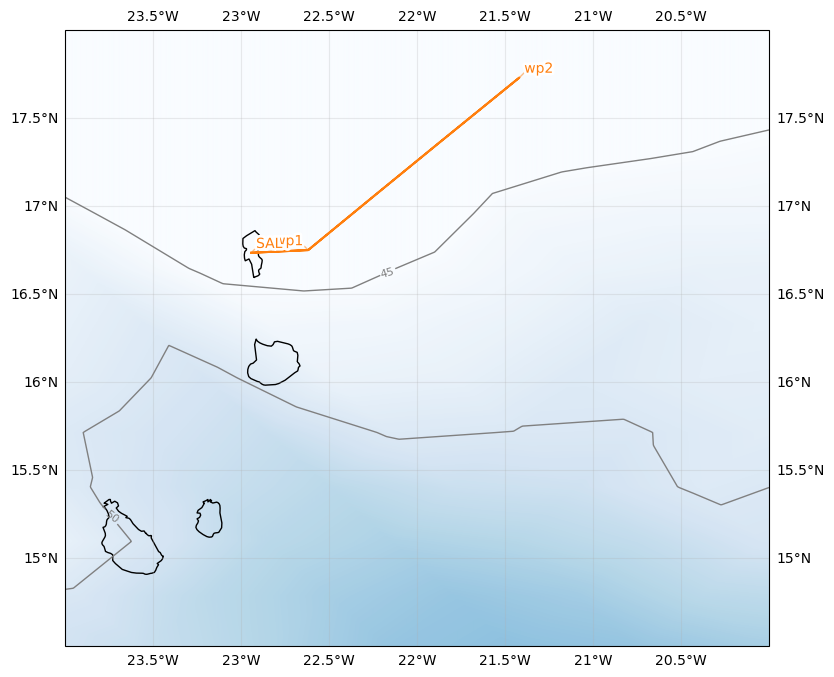

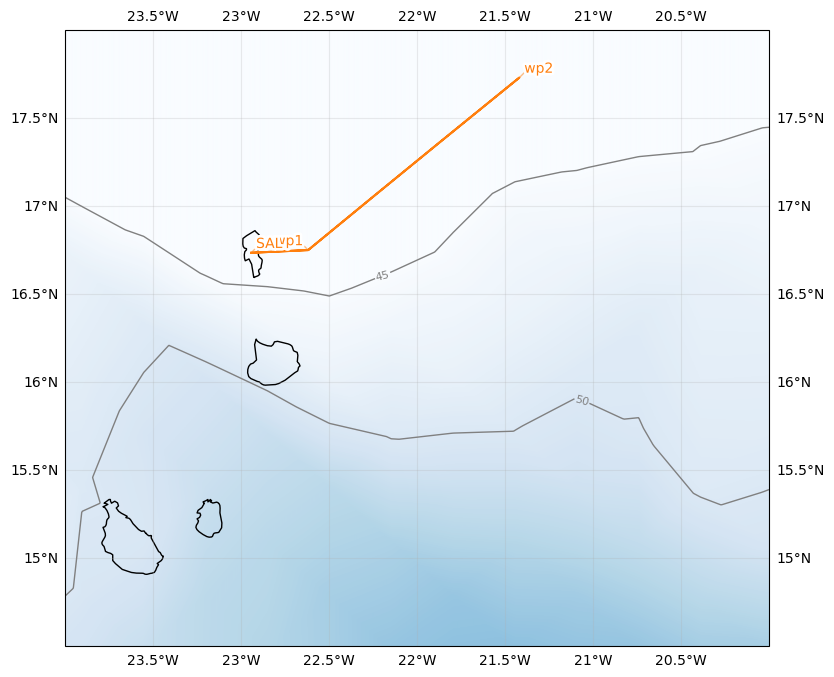

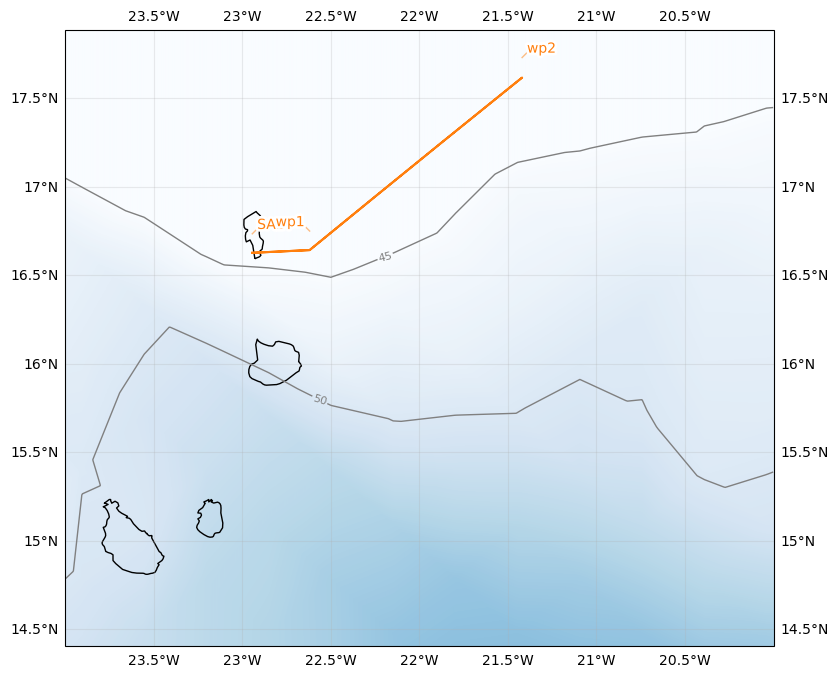

../_images/8a9df03a86c03af5902e319479d24a52e0034f7243f4a6c90374e63026e26202.png

Hide code cell source


import pandas as pd
from dataclasses import asdict

pd.DataFrame.from_records(map(asdict, path)).set_index("label")
lat lon fl time note
label
SAL 16.734488 -22.943974 0.0 None None
wp1 16.750000 -22.620000 NaN None None
wp2 17.730000 -21.420000 NaN None None
wp1 16.750000 -22.620000 NaN None None
SAL 16.734488 -22.943974 0.0 None None

Crew#

Job

Name

Pilot

D Duchanoy

Pilot

G Seurat

Mechanics

T André

Expé Principal

H Bellec

Expé

B Cellou

PI

Louis Jaffeux

LNG

S Bounissou

aWALI

A Blanc

Microphys 1

G Fevre

Microphys 2

A Schwarzenboeck

RASTA

G Legac

BASTA

V Guillet
