Flight plan - ATR-20240826a

Contents

Flight plan - ATR-20240826a#

c_cloud

Flight plan#

  • The flight is planned to take off at 2024-08-26 12:36:00+00:00 UTC and land at 2024-08-26 16:00:00+00:00 UTC.

  • Flight track designed for to sample conditions ahead of the African Easterly Wave Trough

  • Following flight will follow same track and sample conditions behind the African Easterly Wave Trough (the trough passes by in-between flights)

  • Take off moved to 12:36 UTC due to airport opening at 12:30 UTC.

  • NOTE: flight plan was modified in-flight to sample a growing convective cell, or a “golden-case”

Hide code cell source


from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

date_time = datetime(2024, 8, 23, 12, 0, 0)
date_time_str = date_time.strftime('%Y-%m-%d')
flight_time = datetime(2024, 8, 26, 12, 0, 0)

radius = 70e3 # units: km

airport = sal
wp1 = LatLon(lat=16.766, lon=-22.749, label='wp1')
wp2 = LatLon(lat=15.618, lon=-21.242, label='wp2')

path = [airport, wp1, wp2, wp1, airport]

ds = cat.HIFS(refdate=date_time_str, reftime=date_time.hour).to_dask()
cwv_flight_time = ds["tcwv"].sel(time=flight_time, method = "nearest")

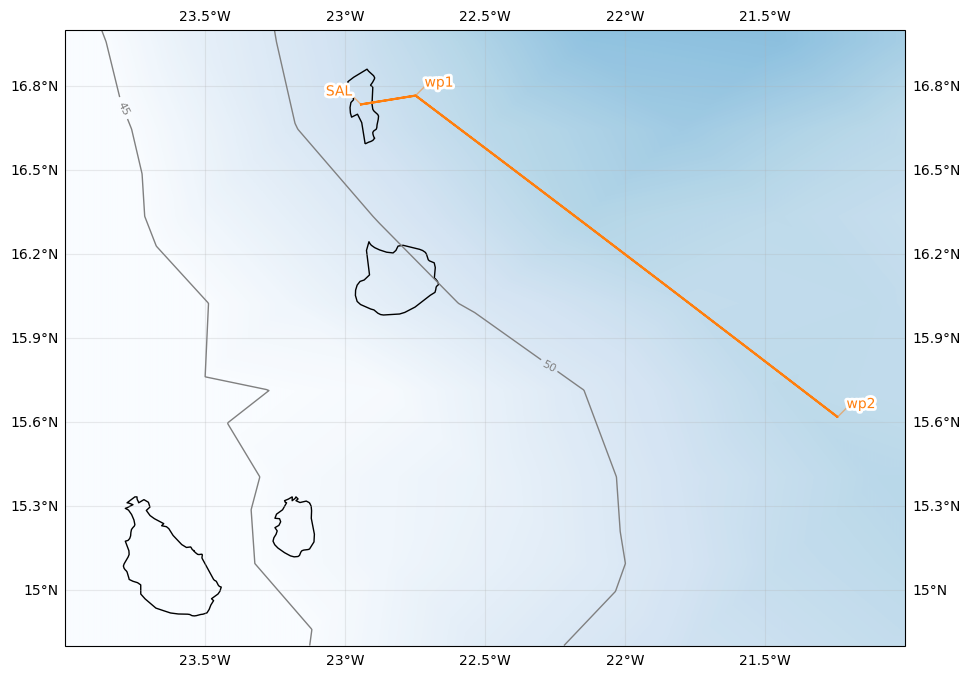

ax = path_preview(path)
ax.set_extent([-24, -21, 14.8, 17])

plot_cwv(cwv_flight_time)

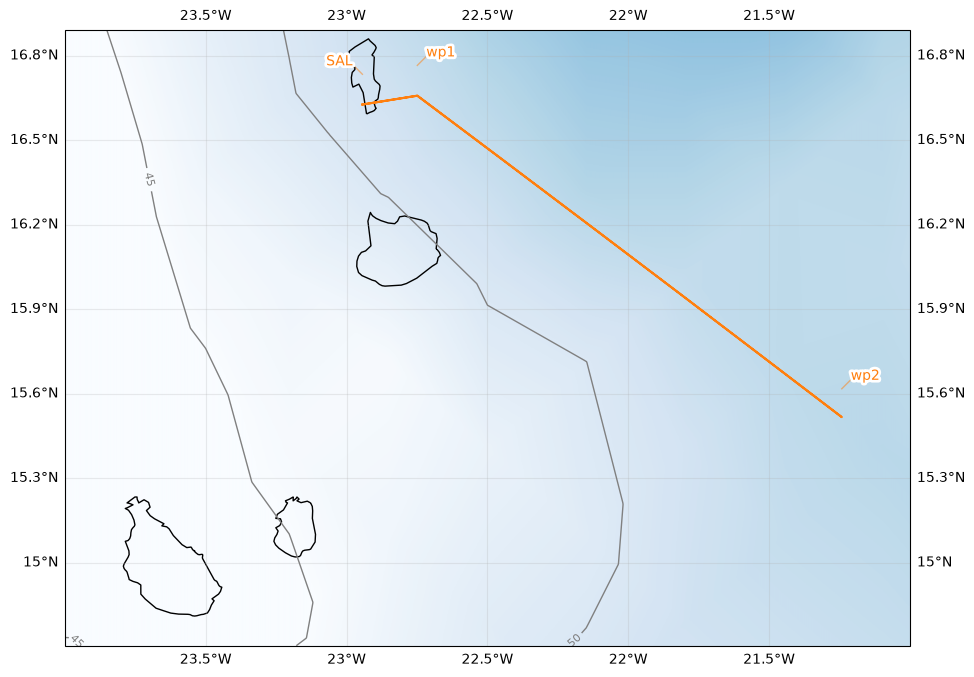

../_images/16137fde8a2bac4b85378ccf7af41bf59c529c955df9d428c6781e7734c152e8.png

Flight Levels

Hide code cell source


import pandas as pd
from dataclasses import asdict

pd.DataFrame.from_records(map(asdict, path)).set_index("label")
lat lon fl time note
label
SAL 16.734488 -22.943974 0.0 None None
wp1 16.766000 -22.749000 NaN None None
wp2 15.618000 -21.242000 NaN None None
wp1 16.766000 -22.749000 NaN None None
SAL 16.734488 -22.943974 0.0 None None

Crew#

Job

Name

Pilot

Guillaume Seurat

Pilot

Dominique Duchanoy

Mechanics

Thierry André

Expé Principal

Hubert Bellec

Expé

Claude Lainard

PI

Sandrine Bony

LNG

Frédéric Laly

aWALI

Pierre Coutris

Microphys 1

Alfons Schwarzenboeck

Microphys 2

Pierre Coutris

RASTA

Julien Delanoë

BASTA

Emmeline François
