Flight plan - ATR-20240820a

Contents

Flight plan - ATR-20240820a#

ec_under

Flight plan#

  • The flight is planned to take off at 2024-08-20 14:33:00+00:00 UTC and land at 2024-08-20 18:03:00+00:00 UTC.

  • Normal MAESTRO flight pattern with first leg at about FL200, next two legs at cloud base, and final leg in the boundary layer.

  • Coordination with EarthCare.

Hide code cell source


from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

date_time = datetime(2024, 8, 17, 12, 0, 0)
date_time_str = date_time.strftime('%Y-%m-%d')
flight_time = datetime(2024, 8, 20, 12, 0, 0)

airport = sal
wp1 = LatLon(lat=18.574, lon=-24.765, label='wp1')
wp2 = LatLon(lat=17.706, lon=-25.035, label='wp2')
ec_meeting_pt = LatLon(lat=18.149, lon=-24.947, label='EC_meeting_pt')
wp3 = LatLon(lat=18.594, lon=-24.858, label='wp3')
wp4 = LatLon(lat=17.723, lon=-25.128, label='wp4')
path = [airport, wp1, wp2, ec_meeting_pt, wp3, wp4, airport]

ds = cat.HIFS(refdate=date_time_str, reftime=date_time.hour).to_dask()
cwv_flight_time = ds["tcwv"].sel(time=flight_time, method = "nearest")

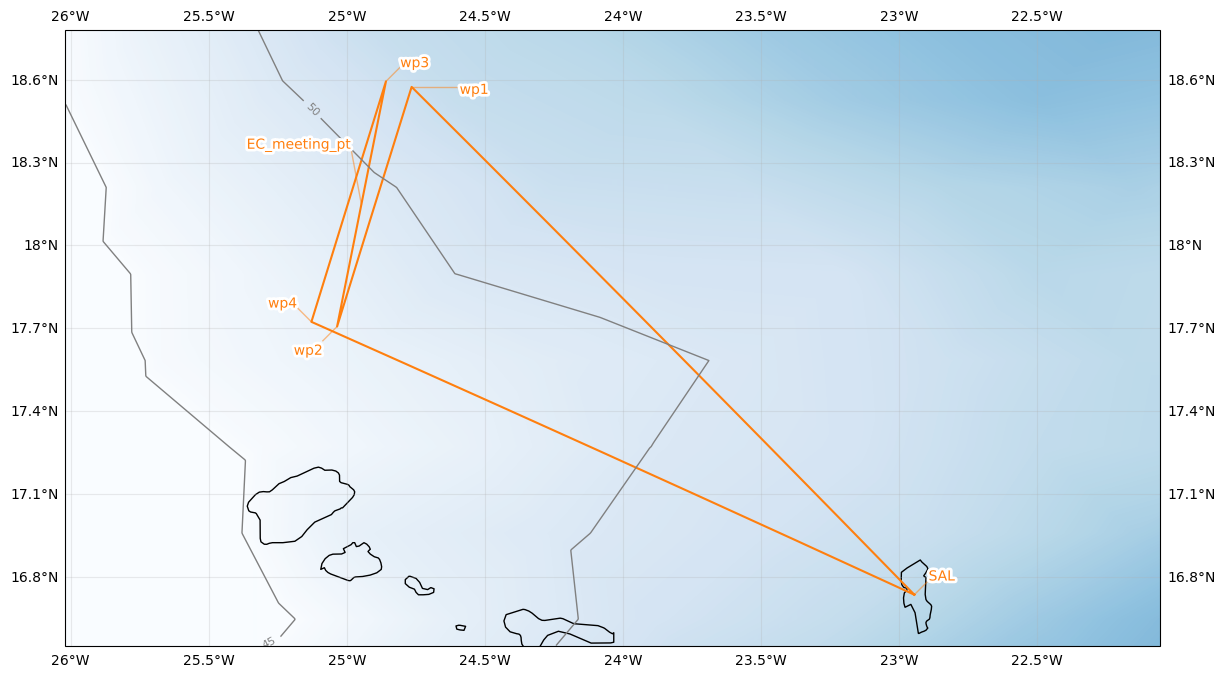

ax = path_preview(path)
plot_cwv(cwv_flight_time)

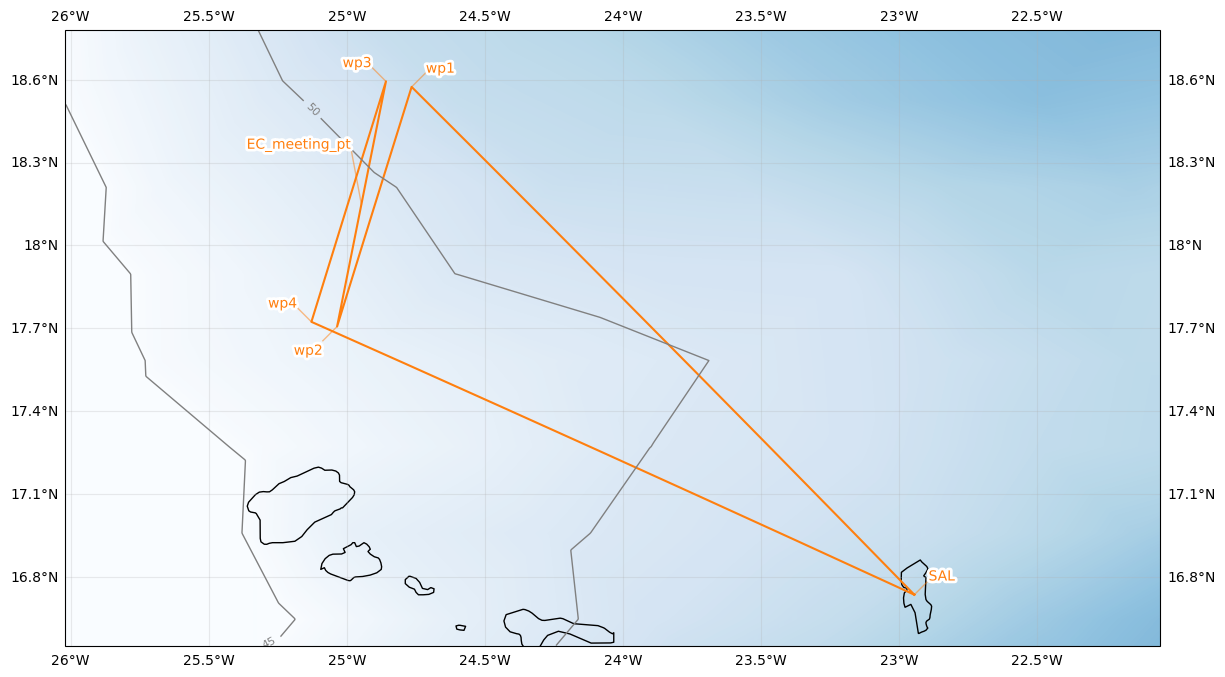

../_images/1b8235f103b8215b744c5cb0a92531b7640f28d897223cfa918c728750fcee5d.png

  • SAFIRE Flight Plan submitted to Air Traffic Control (ATC)

Page 1

Hide code cell source


import pandas as pd
from dataclasses import asdict

pd.DataFrame.from_records(map(asdict, path)).set_index("label")
lat lon fl time note
label
SAL 16.734488 -22.943974 0.0 None None
wp1 18.574000 -24.765000 NaN None None
wp2 17.706000 -25.035000 NaN None None
EC_meeting_pt 18.149000 -24.947000 NaN None None
wp3 18.594000 -24.858000 NaN None None
wp4 17.723000 -25.128000 NaN None None
SAL 16.734488 -22.943974 0.0 None None

Crew#

Job

Name

Pilot

Guillaume Seurat

Pilot

Jean-François Bourdinot

Mechanics

Maxen André

Expé Principal

Clément Bezier

Expé

Greg Ehses

PI

Marie Lothon

LNG

Kevin Huet

aWALI

Frédérique Laly

Microphys 1

Antoine Baudoux

Microphys 2

Thierry Latchimy

RASTA

Julien Delanoë

BASTA

Sophie Bounissou
