Flight plan - ATR-20240816b#

c_atr

Flight plan#

  • The flight is planned to take off at 2024-08-16 16:00:00+00:00 UTC and land at 2024-08-16 19:30:00+00:00 UTC.

  • Normal MAESTRO flight pattern.

  • Deep convection expected.

  • The HALO circle around the ATR-transects will be of radius 70 km centered at 17.433 N, 23.5 W.

Hide code cell source


from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

date_time = datetime(2024, 8, 6, 12, 0, 0)
date_time_str = date_time.strftime('%Y-%m-%d')
flight_time = datetime(2024, 8, 11, 12, 0, 0)

from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

date_time = datetime(2024, 8, 6, 12, 0, 0)
date_time_str = date_time.strftime('%Y-%m-%d')
flight_time = datetime(2024, 8, 16, 12, 0, 0)

radius = 70e3 # units: km
circle_atr = LatLon(lat=17.433, lon=-23.5, label="")
halo_circle = IntoCircle(circle_atr, radius, 360)

airport = sal
wp1 = LatLon(lat=16.781, lon=-22.731, label='wp1')
wp2 = LatLon(lat=17.968 , lon=-24.134, label='wp2')
path = [airport, wp1, wp2, wp1, wp2, wp1, airport]

ds = cat.HIFS(refdate=date_time_str, reftime=date_time.hour).to_dask()
cwv_flight_time = ds["tcwv"].sel(time=flight_time, method = "nearest")

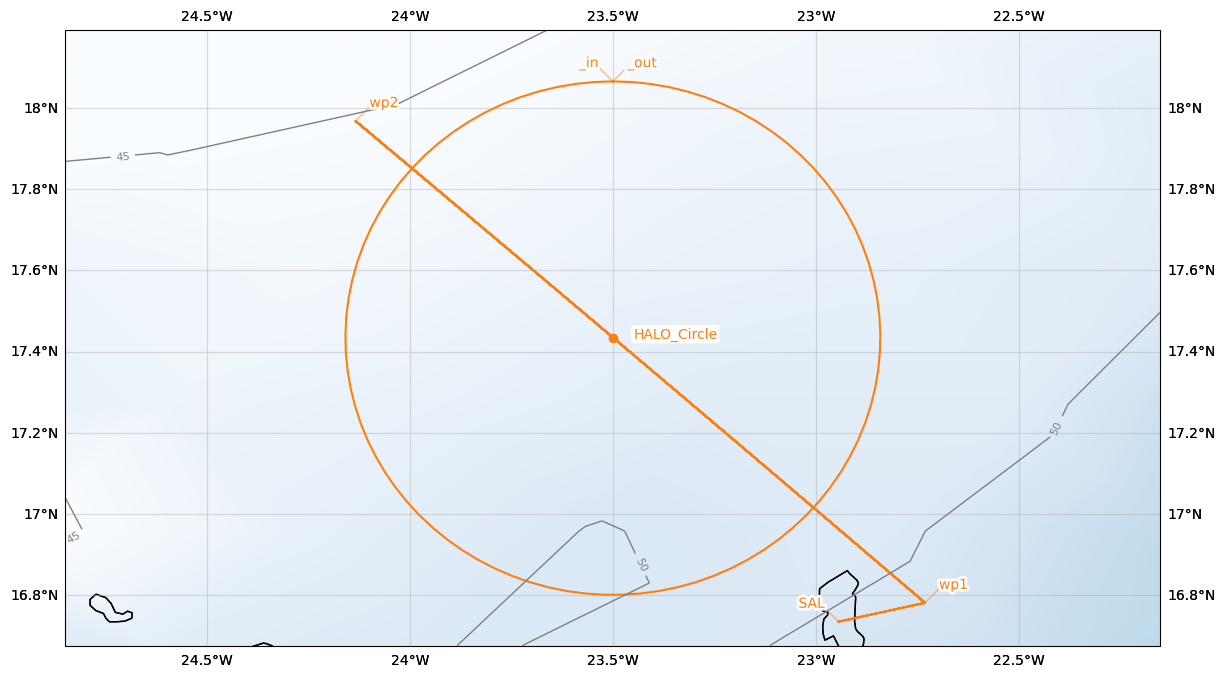

ax = path_preview(path)
path_preview([circle_atr.course(0, radius), halo_circle], ax=ax)  # HACK: Add HALO circle
ax.scatter(circle_atr.lon, circle_atr.lat, color="tab:orange")
ax.text(circle_atr.lon+0.05, circle_atr.lat, color="tab:orange", s='HALO_Circle', bbox=dict(facecolor='white',edgecolor='white', boxstyle='round,pad=0.1'))
# ax.set_extent([-26.5, -20.8, 15, 19.5])

plot_cwv(cwv_flight_time)
../_images/479576bb6a2c44d0bae193cf64684d49824818405af6bdc35e006dec748aab8e.png

Flight Levels

  • SAFIRE Flight Plan submitted to Air Traffic Control (ATC)

Page 1

Hide code cell source


import pandas as pd
from dataclasses import asdict

pd.DataFrame.from_records(map(asdict, path+[circle_atr])).set_index("label")
lat lon fl time note
label
SAL 16.734488 -22.943974 0.0 None None
wp1 16.781000 -22.731000 NaN None None
wp2 17.968000 -24.134000 NaN None None
wp1 16.781000 -22.731000 NaN None None
wp2 17.968000 -24.134000 NaN None None
wp1 16.781000 -22.731000 NaN None None
SAL 16.734488 -22.943974 0.0 None None
17.433000 -23.500000 NaN None None

Crew#

Job

Name

Pilot

Jean-François Bourdinot

Pilot

Guillaume Seurat

Mechanics

Thierry André

Expé Principal

Gilles Vergez

Expé

Tania Jiang

PI

Sandrine Bony

LNG

Kevin Huet

aWALI

Hélène Cassan

Microphys 1

Pierre Coutris

Microphys 2

Thierry Latchimy

RASTA

Julien Delanoë

BASTA

Sophie Bounissou
