Flight plan - ATR-20240813a

Contents

Flight plan - ATR-20240813a#

ec_under

Flight plan#

  • The flight is planned to take off at 2024-08-13 14:15:00+00:00 UTC and land at 2024-08-13 17:15:00+00:00 UTC.

  • EC Meeting time at 15:30:00 UTC.

Hide code cell source


from orcestra.flightplan import sal, bco, LatLon, IntoCircle, path_preview, plot_cwv
from datetime import datetime
import intake

cat = intake.open_catalog("https://tcodata.mpimet.mpg.de/internal.yaml")

date_time = datetime(2024, 8, 6, 12, 0, 0)
date_time_str = date_time.strftime('%Y-%m-%d')
flight_time = datetime(2024, 8, 13, 12, 0, 0)

radius = 100e3

airport = sal
wp1 = LatLon(lat=17.531111, lon=-22.090278, label='wp1')
wp2 = LatLon(lat=16.330833, lon=-22.503889, label='wp2')
meeting_pt = LatLon(lat=16.846944, lon=-22.401944, label='EC meeting pt')
wp3 = LatLon(lat=17.560833, lon=-22.261111, label='wp3')
wp4 = LatLon(lat=16.257222, lon=-22.663889, label='wp4')
wp5 = LatLon(lat=17.548611, lon=-22.371389, label='wp5')
wp6 = LatLon(lat=17.550833, lon=-22.461667, label='wp6')
wp7 = LatLon(lat=16.555278, lon=-22.680278, label='wp7')


path = [airport, wp1, wp2, meeting_pt, wp3, wp4, wp5, wp6, wp7, airport]

ds = cat.HIFS(refdate=date_time_str, reftime=date_time.hour).to_dask()
cwv_flight_time = ds["tcwv"].sel(time=flight_time, method = "nearest")

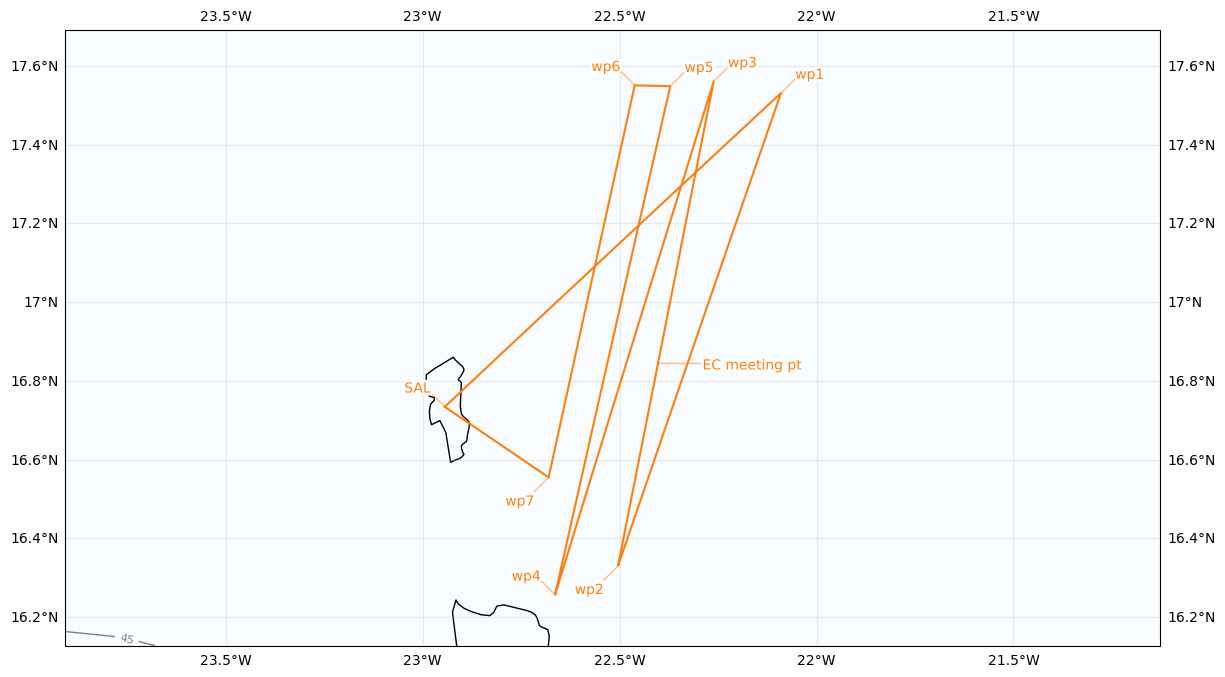

ax = path_preview(path)
plot_cwv(cwv_flight_time)

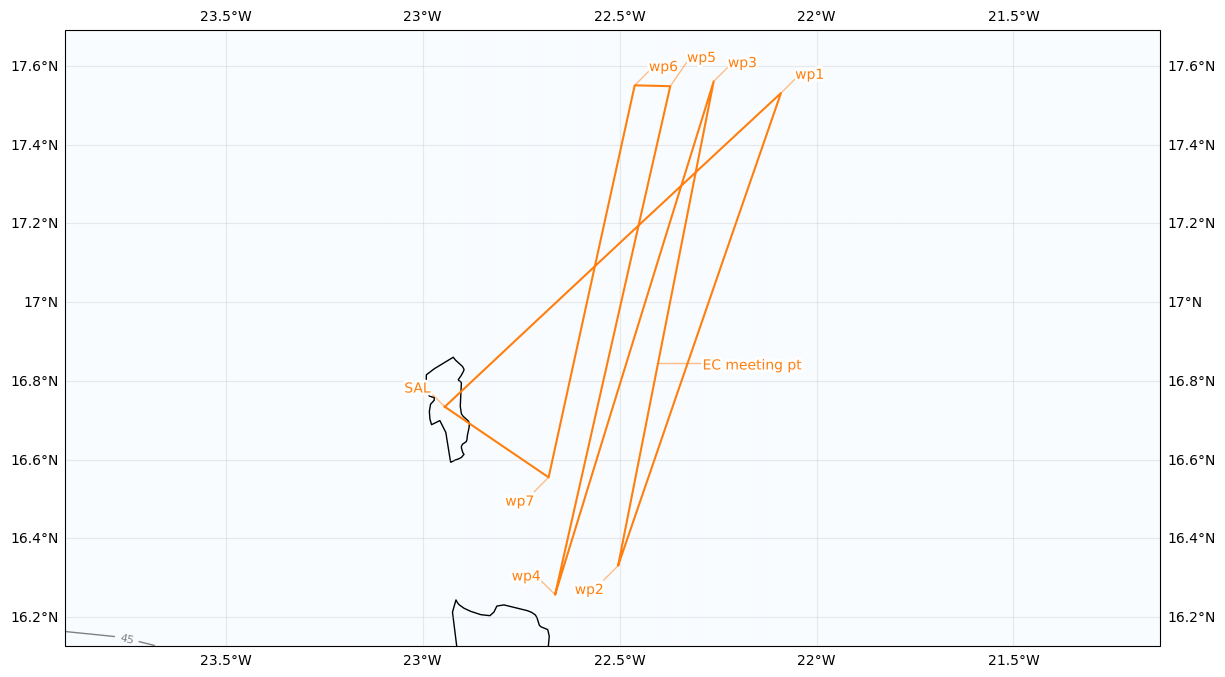

../_images/46810e291de8da9ff8c8576fb0d0d50dca836bfaee4e82bf9268dc61425f6bdd.png

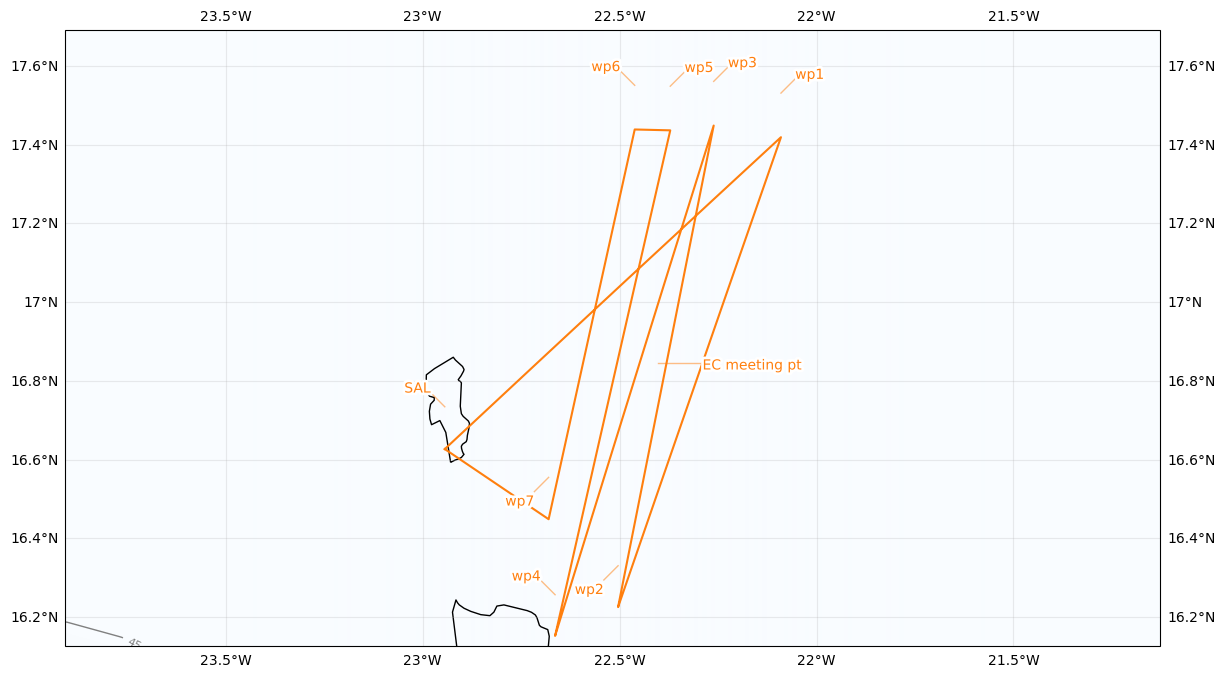

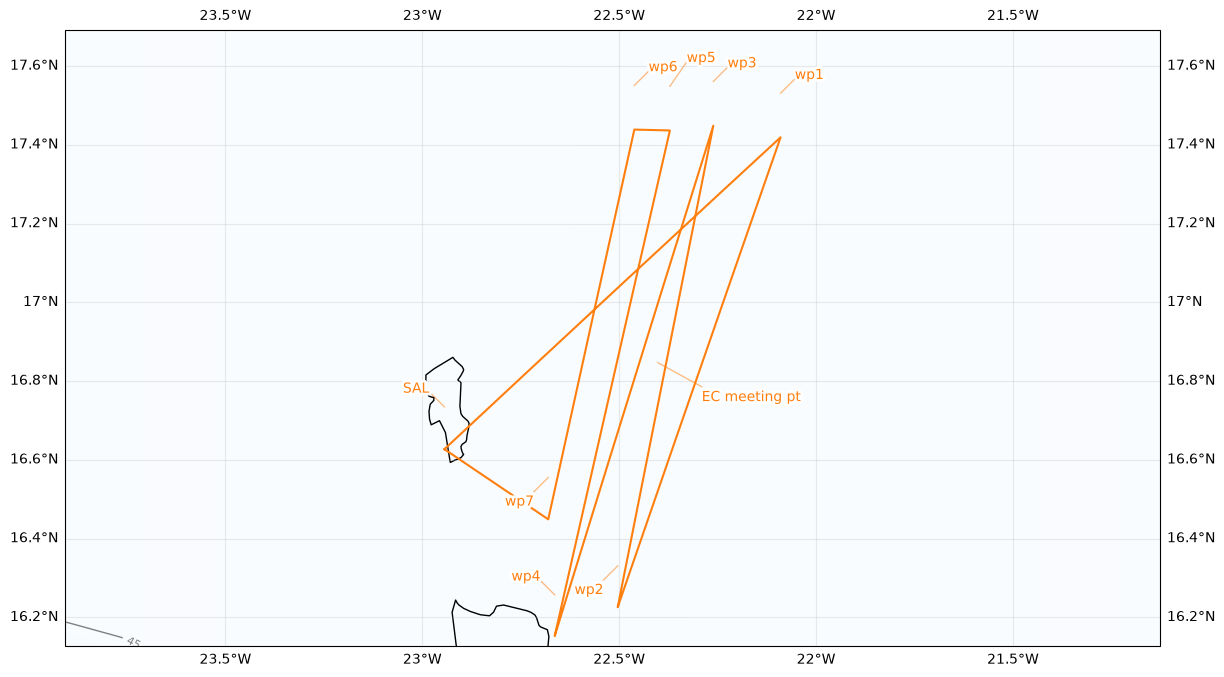

  • SAFIRE Flight Plan submitted to Air Traffic Control (ATC)

Page 1

  • See higher resolution pdf here.

Hide code cell source


import pandas as pd
from dataclasses import asdict

pd.DataFrame.from_records(map(asdict, path)).set_index("label")
lat lon fl time note
label
SAL 16.734488 -22.943974 0.0 None None
wp1 17.531111 -22.090278 NaN None None
wp2 16.330833 -22.503889 NaN None None
EC meeting pt 16.846944 -22.401944 NaN None None
wp3 17.560833 -22.261111 NaN None None
wp4 16.257222 -22.663889 NaN None None
wp5 17.548611 -22.371389 NaN None None
wp6 17.550833 -22.461667 NaN None None
wp7 16.555278 -22.680278 NaN None None
SAL 16.734488 -22.943974 0.0 None None

Crew#

Job

Name

Pilot

JF Bourdinot

Pilot

G Seurat

Mechanics

T André

Expé Principal

G Ehses

Expé

T Jiang

PI

Louis Jaffeux

LNG

S Bounissou

aWALI

J Lagarrigue

Microphys 1

Pierre Coutris

Microphys 2

A Baudoux

RASTA

E François

BASTA

K Huet
