Flight plan - HALO-20240926a

Contents

Flight plan - HALO-20240926a#

ec_under ec_track c_south c_north c_mid

Crew#

Job

Name

PI

Jakob Deutloff

WALES

Konstantin Krueger

HAMP

Wei-Ting Hsiao

Dropsondes

Nina Robbins

Smart/VELOX

Patrizia Schoch

SpecMACS

Tobias Zinner

Flight Documentation

Tristan Vostry

Ground contact

Daniel Rowe

Flight plan#

Hide code cell source
# Define HALO flight and crew
from datetime import datetime

aircraft = "HALO"
flight_time = datetime(2024, 9, 26, 11, 48)
flight_id = f"{aircraft}-{flight_time.strftime('%Y%m%d')}a"
crew = {
    "Mission PI": "Jakob Deutloff",
    "DropSondes": "Nina Robbins",
    "HAMP": "Wei-Ting Hsiao",
    "SMART/VELOX": "Patrizia Schoch",
    "SpecMACS": "Tobias Zinner",
    "WALES": "Konstantin Krueger",
    "Flight Documentation": "Tristan Vostry",
    "Ground Support": "Daniel Rowe",
}
Hide code cell source
# Load forecasts
import easygems.healpix as egh
import intake
import numpy as np
import orcestra.sat
from orcestra.flightplan import tbpb

sat_fcst_date = "2024-09-24"  # date to get satelite forecast(s) from
ifs_fcst_time = "2024-09-25"  # date to get IFS forecast(s) from
ifs_fcst_time = np.datetime64(ifs_fcst_time + "T00:00:00")


# Load satellite track
print(
    f"SATELITE TRACK FORECAST FROM: {sat_fcst_date} FOR FLIGHT DAY: {flight_time:%Y-%m-%d}"
)
ec_track = orcestra.sat.SattrackLoader(
    "EARTHCARE", sat_fcst_date, kind="PRE", roi="BARBADOS"
).get_track_for_day(f"{flight_time:%Y-%m-%d}")
ec_track = ec_track.sel(time=slice(f"{flight_time:%Y-%m-%d} 07:00", None))
ec_lons, ec_lats = ec_track.lon.values, ec_track.lat.values

# Load IFS forecast
cat = "https://tcodata.mpimet.mpg.de/internal.yaml"
ifs_ds = (
    intake.open_catalog(cat)
    .HIFS(datetime=ifs_fcst_time)
    .to_dask()
    .pipe(egh.attach_coords)
)
SATELITE TRACK FORECAST FROM: 2024-09-24 FOR FLIGHT DAY: 2024-09-26
Hide code cell source
# Create Points of flight plan
from orcestra.flightplan import (
    LatLon,
    FlightPlan,
    point_on_track,
    IntoCircle,
)

radius = 72e3 * 1.852 # Mass flux circle radius (m)
speed_halo = 240  # m/s

# Circles
lat_south = 10.5
mid_south = point_on_track(ec_track, lat_south).assign(fl=450, label="c_south")

lat_north = 16.5
mid_north = point_on_track(ec_track, lat_north).assign(fl=450, label="c_north")

mid_mid = mid_south.towards(mid_north, 0.5).assign(label="c_mid", fl=410)

lat_neast = 14
lon_neast = mid_mid.lon + 3.5
mid_neast = LatLon(lat_neast, lon_neast, fl=430, label="c_northeast")

lat_seast = 11
lon_seast = mid_mid.lon + 2.3 + ((5 * 60 * speed_halo) / 110e3)
mid_seast = LatLon(lat_seast, lon_seast, fl=450, label="c_southeast")

# Ec points
ec_south = point_on_track(ec_track, lat=mid_south.lat - 1.2).assign(
    label="ec_south", fl=450
)
ec_north = point_on_track(ec_track, lat=mid_north.lat + 1.2).assign(
    label="ec_north", fl=450
)
ec_under = point_on_track(
    ec_track, lat=(ec_north.lat + ec_south.lat) / 2, with_time=True
).assign(label="ec_under", fl=450, note="Meet EarthCARE")
Hide code cell source
# Create plan
waypoints = [
    tbpb,
    IntoCircle(mid_mid, radius=radius, enter=-90, angle=-360),
    IntoCircle(mid_neast, radius=radius, enter=-90, angle=-360),
    IntoCircle(mid_seast, radius=radius, enter=180, angle=-360),
    IntoCircle(mid_south, radius=radius, enter=0, angle=420),
    ec_south,
    ec_under,
    ec_north,
    IntoCircle(mid_north, radius=radius, angle=-420),
    tbpb,
]

extra_waypoints = []

# FlightPlan and print short statement
plan = FlightPlan(
    path=waypoints,
    flight_id=flight_id,
    extra_waypoints=extra_waypoints,
    crew=crew,
    aircraft=aircraft,
)

msg = (
    f"Flight ID: {plan.flight_id}\n"
    + f"Take-off: {plan.takeoff_time:%H:%M %Z}\n"
    + f"Landing:  {plan.landing_time:%H:%M %Z}\n"
    + f"Duration: {plan.duration}"
)
print(msg)
Flight ID: HALO-20240926a
Take-off: 11:48 UTC
Landing:  20:21 UTC
Duration: 8:32:41.595579
Hide code cell source

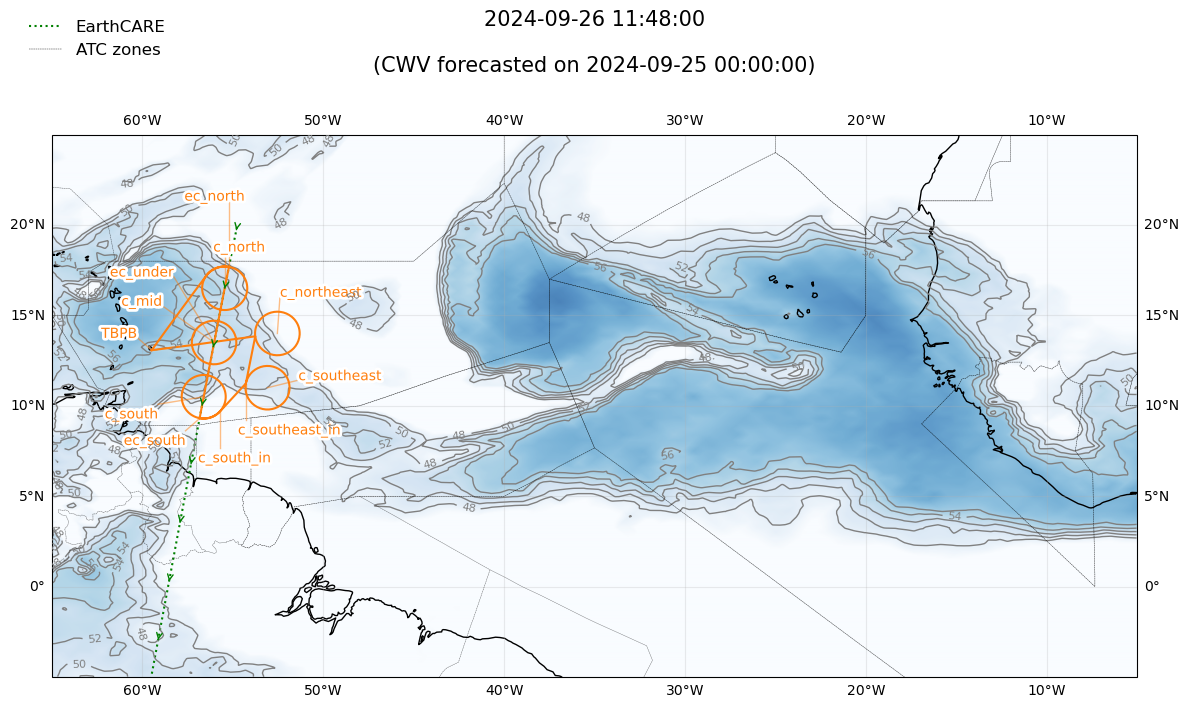

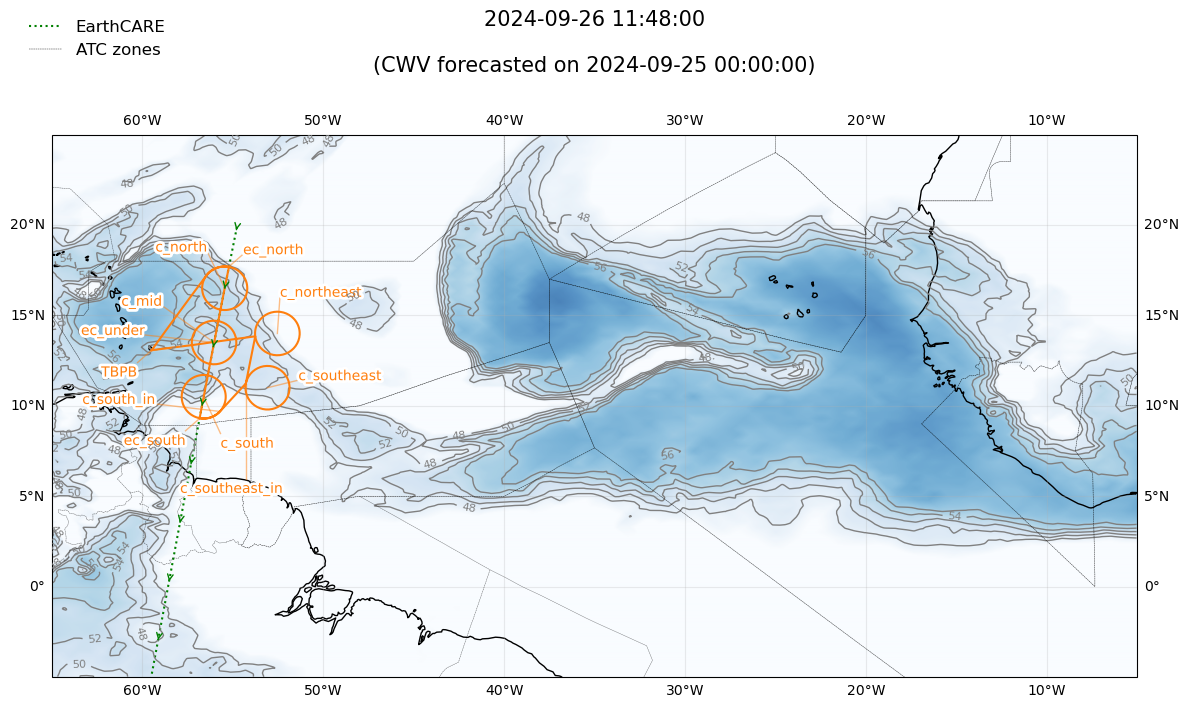

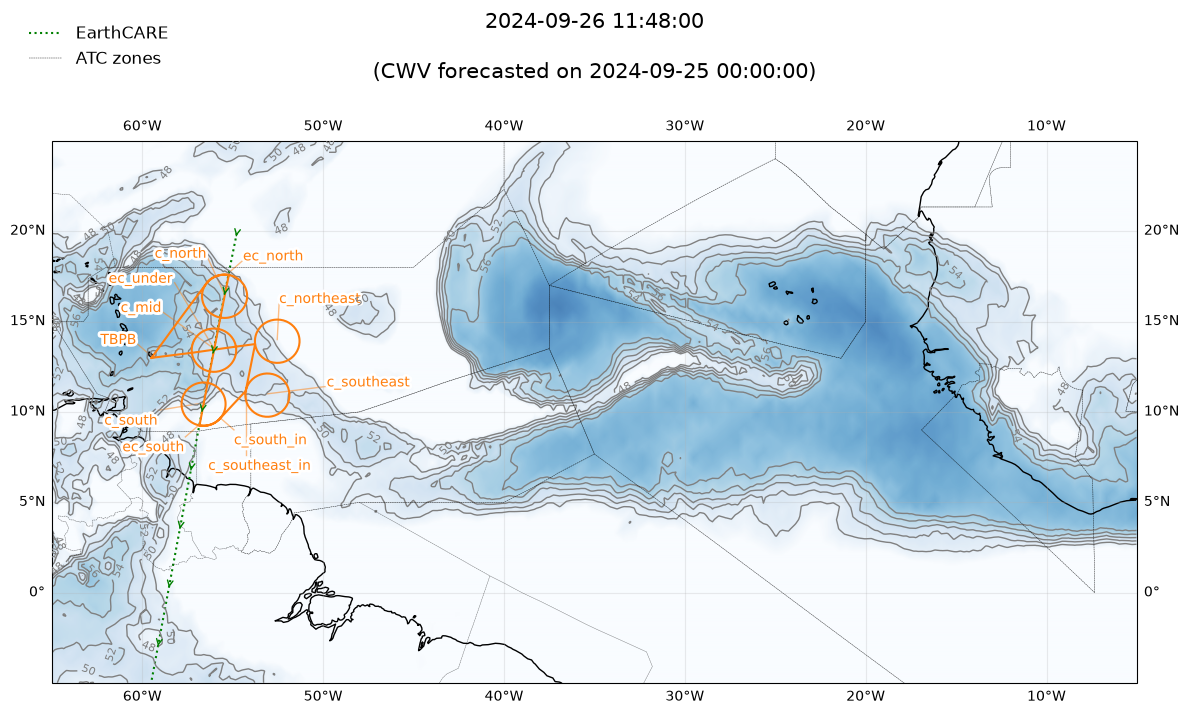

# Plot CVW forecast
from HALO_20240919a_plan import plot_flight_plan_satellite_forecast
from orcestra.flightplan import plot_cwv

figsize = (14, 8)
lon_min, lon_max, lat_min, lat_max = -65, -5, -5, 25
domain_lonlat = [lon_min, lon_max, lat_min, lat_max]


def plot_ifs_cwv_forecast(fig, ax, ifs_ds, flight_time, levels=None):
    cwv_flight_time = ifs_ds["tcwv"].sel(time=flight_time, method="nearest")
    plot_cwv(cwv_flight_time, ax=ax, levels=levels)


plot_cwv_kwargs = {"flight_time": flight_time, "levels": [48, 50, 52, 54, 56]}


plot_flight_plan_satellite_forecast(
    figsize,
    flight_time,
    plan,
    domain_lonlat,
    is_ec_track=True,
    ec_track=ec_track,
    is_pace_track=False,
    pace_track=None,
    forecast_overlay=True,
    ifs_ds=ifs_ds,
    ifs_fcst_time=ifs_fcst_time,
    forecast_title_label="CWV",
    plot_forecast_func=plot_ifs_cwv_forecast,
    plot_forecast_kwargs=plot_cwv_kwargs,
    atc_zones=True,
    worldfirs_json="worldfirs.json",
    is_meteor=False,
)
/home/runner/miniconda3/envs/orcestra_book/lib/python3.12/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_physical/ne_50m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)
(<Figure size 1400x800 with 1 Axes>,
 <GeoAxes: title={'center': '2024-09-26 11:48:00\n\n(CWV forecasted on 2024-09-25 00:00:00)'}>)
../_images/57a28372a907fd573fb96904cf608cb35baf9db70cf49ff1011b7585f7116777.png
Hide code cell source

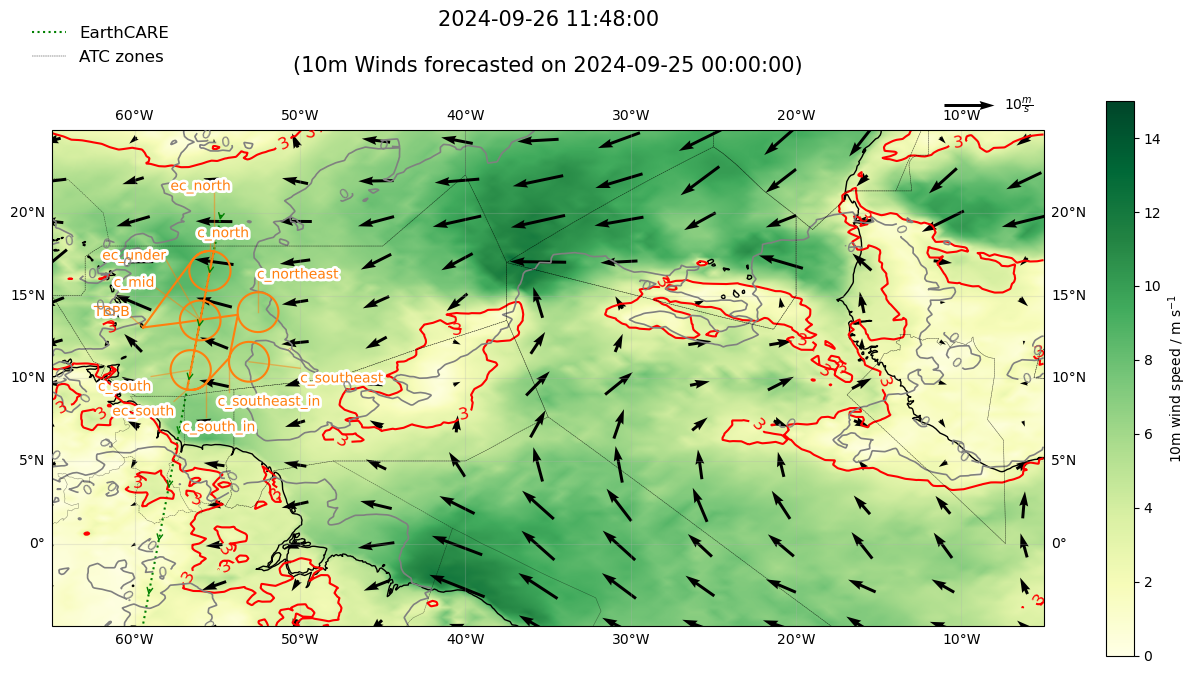

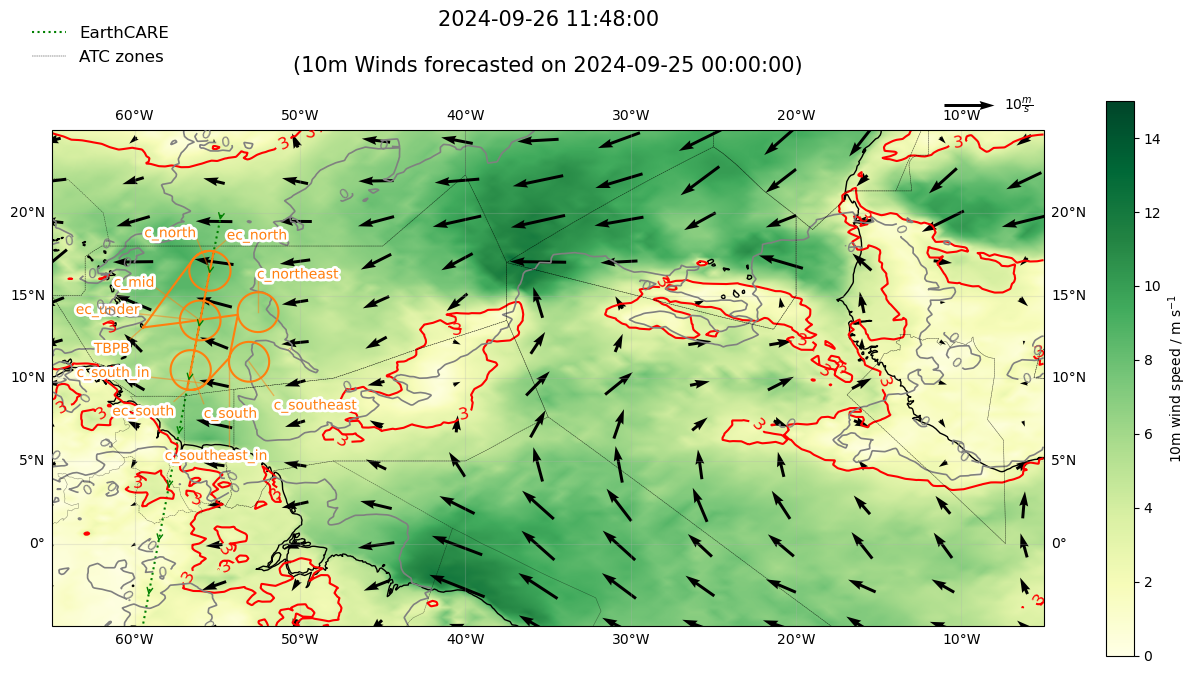

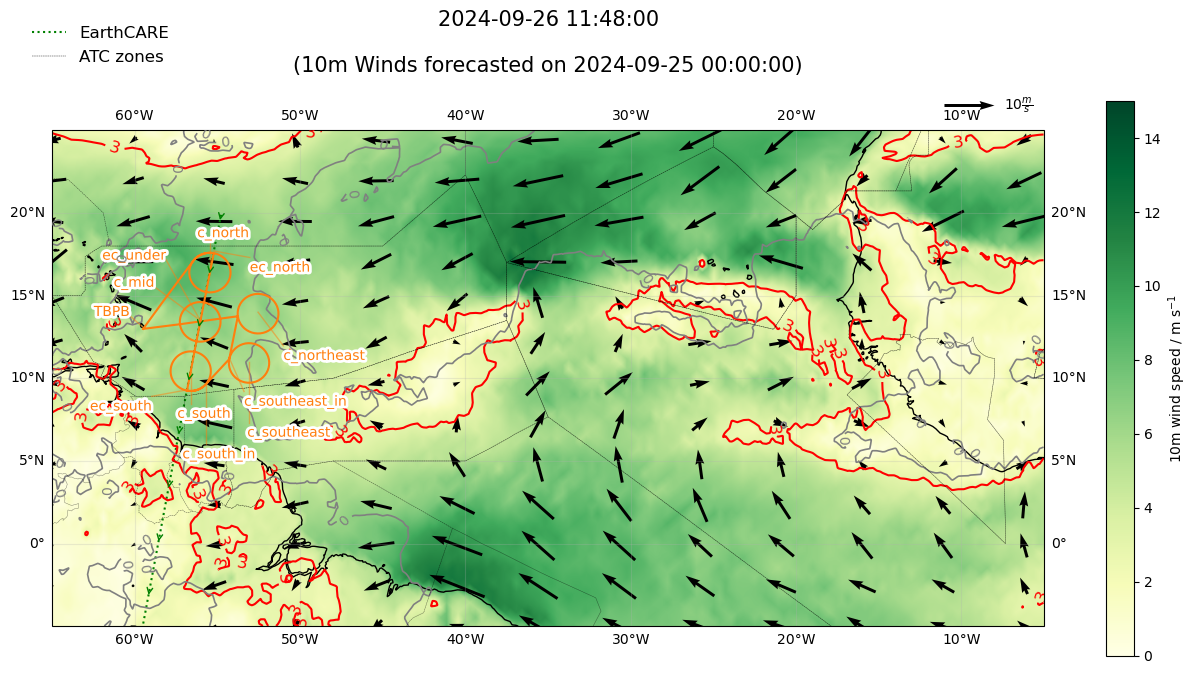

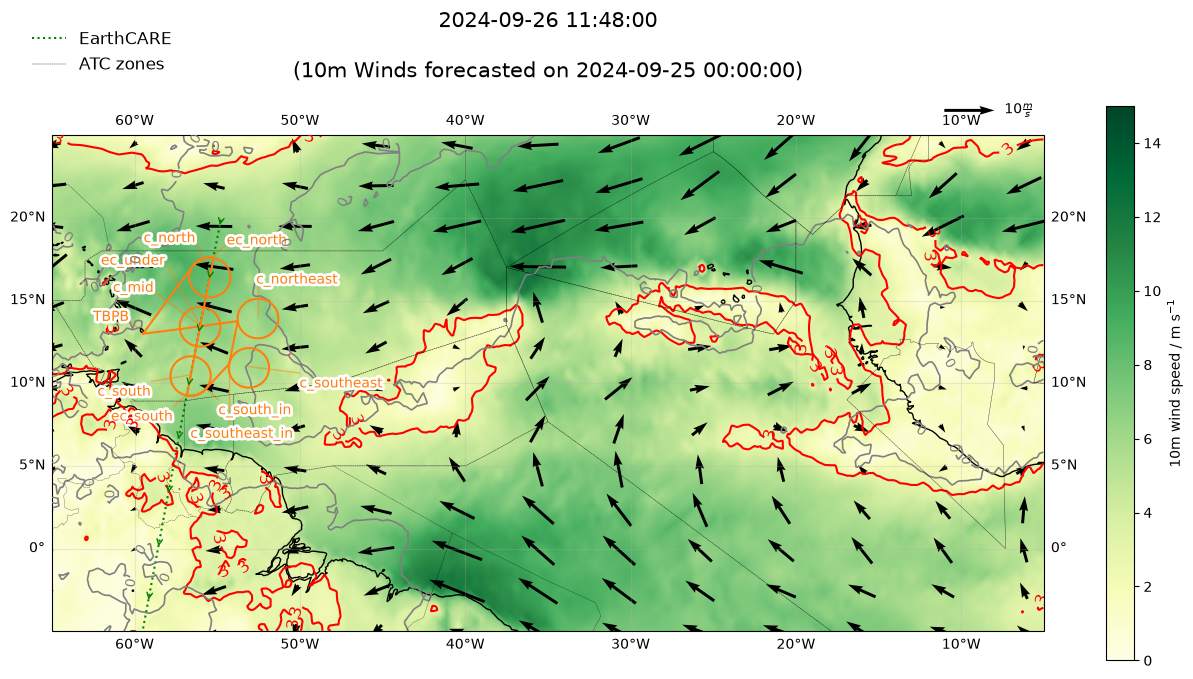

# Plot 10m winds forecast
import HALO_20240919a_sfc_winds as sfc_winds

figsize = (16, 9)


def plot_ifs_sfc_winds_forecast(fig, ax, ifs_ds, domain_lonlat, flight_time):
    u10m = ifs_ds["10u"].sel(time=flight_time, method="nearest")
    v10m = ifs_ds["10v"].sel(time=flight_time, method="nearest")
    windspeed_10m = np.sqrt(u10m**2 + v10m**2)
    sfc_winds._windspeed_plot(windspeed_10m, fig, ax)
    sfc_winds._wind_direction_plot(u10m, v10m, ax, domain_lonlat)
    sfc_winds._windspeed_contour(windspeed_10m, ax)
    sfc_winds._draw_confluence_contour(v10m, ax)


plot_ifs_sfc_winds_kwargs = {
    "domain_lonlat": domain_lonlat,
    "flight_time": flight_time,
}

fig, ax = plot_flight_plan_satellite_forecast(
    figsize,
    flight_time,
    plan,
    domain_lonlat,
    is_ec_track=True,
    ec_track=ec_track,
    is_pace_track=False,
    pace_track=None,
    forecast_overlay=True,
    ifs_ds=ifs_ds,
    ifs_fcst_time=ifs_fcst_time,
    forecast_title_label="10m Winds",
    plot_forecast_func=plot_ifs_sfc_winds_forecast,
    plot_forecast_kwargs=plot_ifs_sfc_winds_kwargs,
    atc_zones=True,
    worldfirs_json="worldfirs.json",
    is_meteor=False,
)
../_images/6da84e03577a29f915117184bd43781dc17f27f1e0883f050509170e50ef9acb.png
Hide code cell source

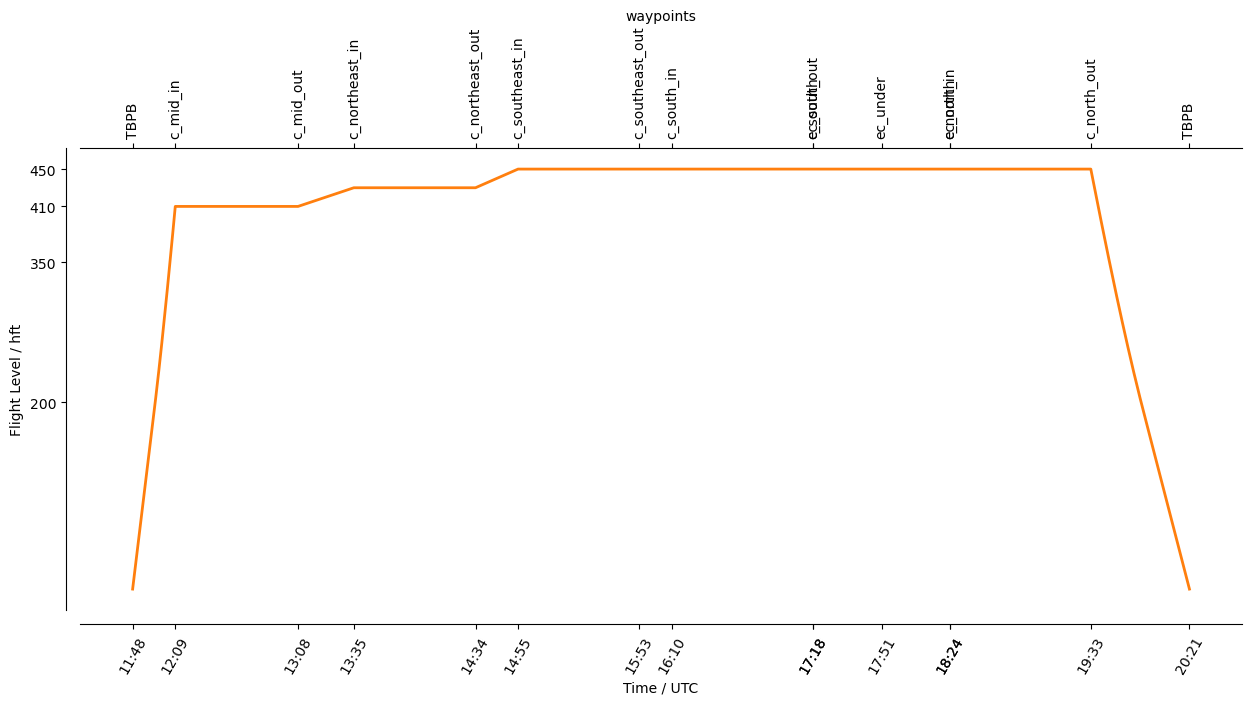

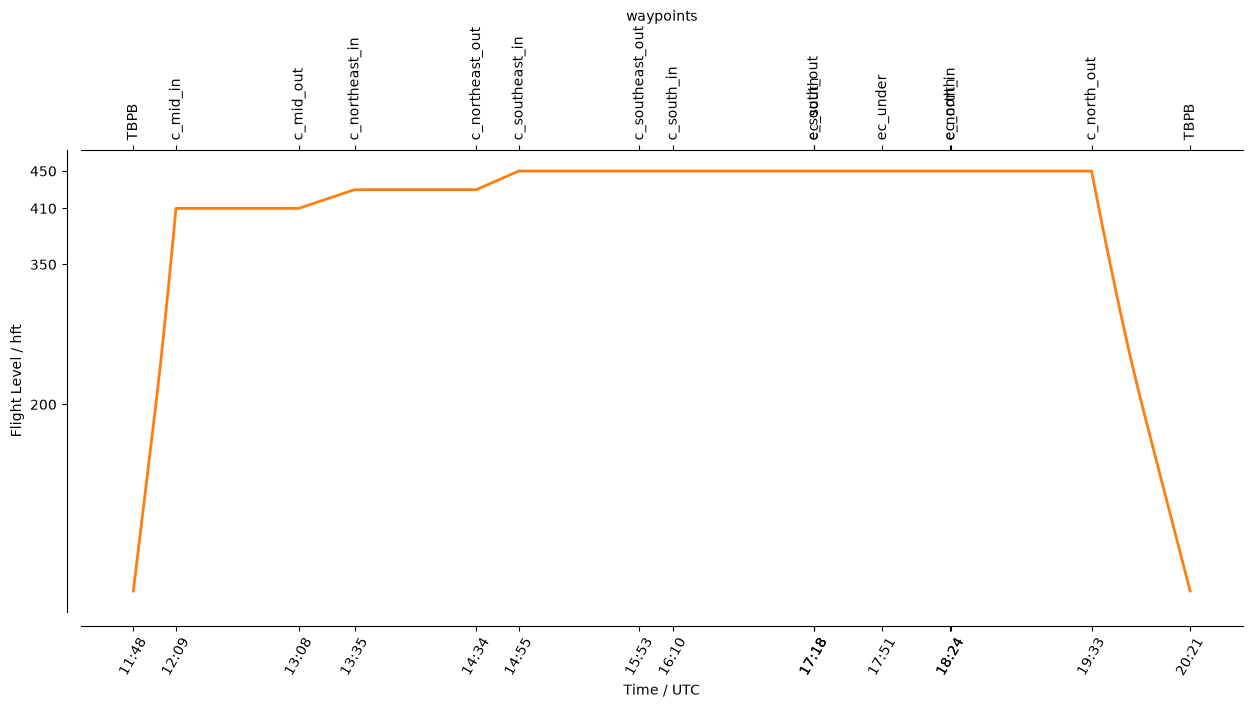

from orcestra.flightplan import vertical_preview

vertical_preview(waypoints)
../_images/b414ca04660179ca751fd2f3c767bb5b3a25e56dad9f65826793a708a396b326.png
Hide code cell source
plan.show_details()
plan.export()
Detailed Overview:
              TBPB         N13 04.48, W059 29.55, FL000, 11:48:25 UTC,
circle around c_mid        N13 30.06, W056 02.48, FL410, 12:09:07 UTC - 13:08:40 UTC, radius: 72 nm, 360° CCW, enter from west
circle around c_northeast  N14 00.00, W052 32.48, FL430, 13:35:45 UTC - 14:34:46 UTC, radius: 72 nm, 360° CCW, enter from west
to (helper)   c_southeast_in N11 13.97, W054 17.06, FL450, 14:55:24 UTC, upcoming circle will be entered here
circle around c_southeast  N11 00.00, W053 05.21, FL450, 14:55:24 UTC - 15:53:57 UTC, radius: 72 nm, 360° CCW, enter from west
to (helper)   c_south_in   N09 41.31, W055 42.89, FL450, 16:10:09 UTC, upcoming circle will be entered here
circle around c_south      N10 30.00, W056 36.87, FL450, 16:10:09 UTC - 17:18:27 UTC, radius: 72 nm, 420° CW, enter from south east
to            ec_south     N09 18.00, W056 50.55, FL450, 17:18:43 UTC,
to            ec_under     N13 30.00, W056 02.34, FL450, 17:51:46 UTC, Meet EarthCARE
to            ec_north     N17 42.00, W055 12.96, FL450, 18:24:50 UTC,
circle around c_north      N16 30.00, W055 27.21, FL450, 18:24:58 UTC - 19:33:16 UTC, radius: 72 nm, 420° CCW, enter from north
to            TBPB         N13 04.48, W059 29.55, FL000, 20:21:07 UTC,
